Ignition Coil Tester GTC 505
- Product Code: Ignition Coil Tester GTC 505
- Availability: In Stock
GTC505
Finding dead or malfunctioning coils and plugs can be hard work. The GTC505 makes ignition troubleshooting quick, easy, and painless. It’ll help you, and the people depending on you, get moving again!
The GTC505 is the product of 20 years of work (by GTC) on ignition diagnostics. This tool will tell you exactly what’s going on with any spark ignition system as soon as you put its sensor by your coil (or spark plug wire). Swapping coils and other components in and out until you figure out what’s wrong is slow, tedious, and wasteful. The GTC505 will take the guesswork out, so you can be confident that the problem will be solved on your first try.
Description
Who it’s For:
Automotive technicians doing diagnostics, tuning, or aftermarket modifications
Motorcycle technicians doing diagnostics or aftermarket modification on modern engines
Marine and small engine mechanics should take a look at the GTC505m kit.
What it Does:
Quickly and easily detects engine RPM and spark parameters. Useful for checking for ignition system faults and misfires, and for tuning or aftermarket modifications.
How it Works:
Connect the appropriate sensor
Turn the unit on
Position the sensor near the ignition module or wire

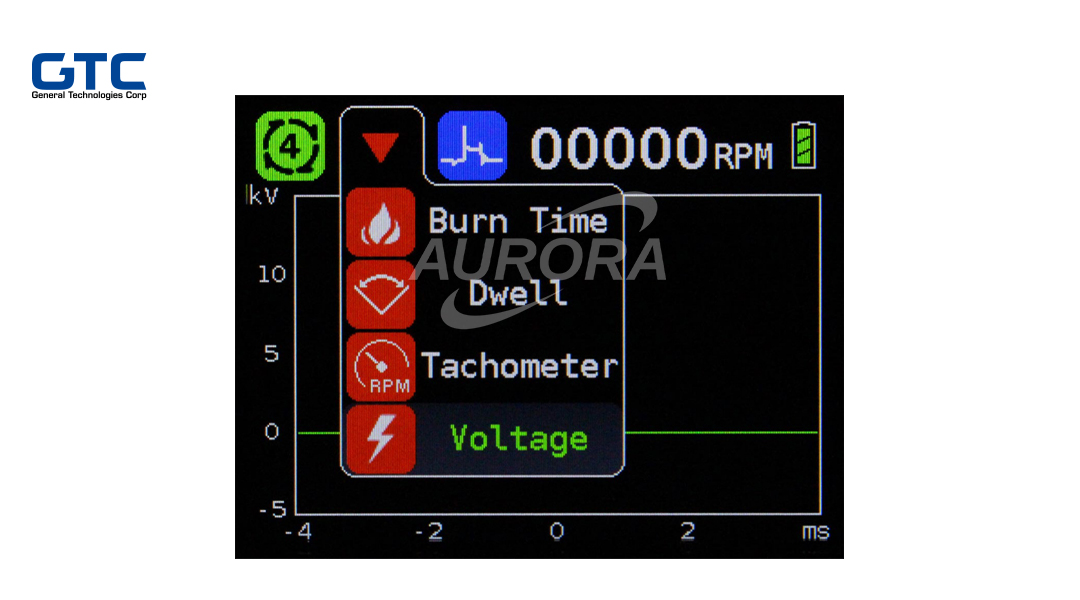

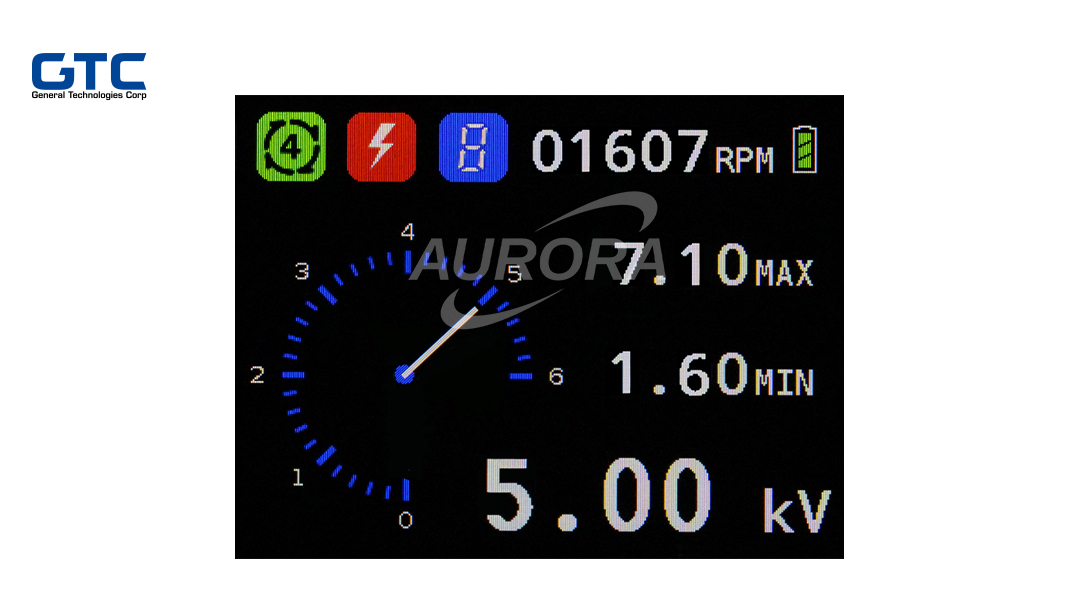

Check the engine RPM, spark peak voltage, burn time, and dwell angle/ramp time.
Features

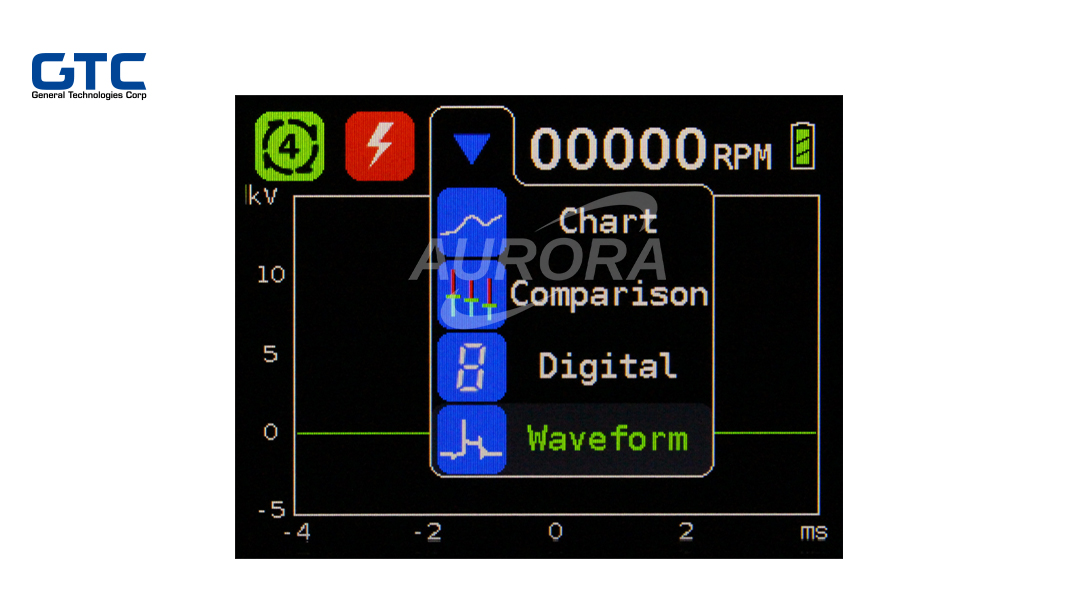

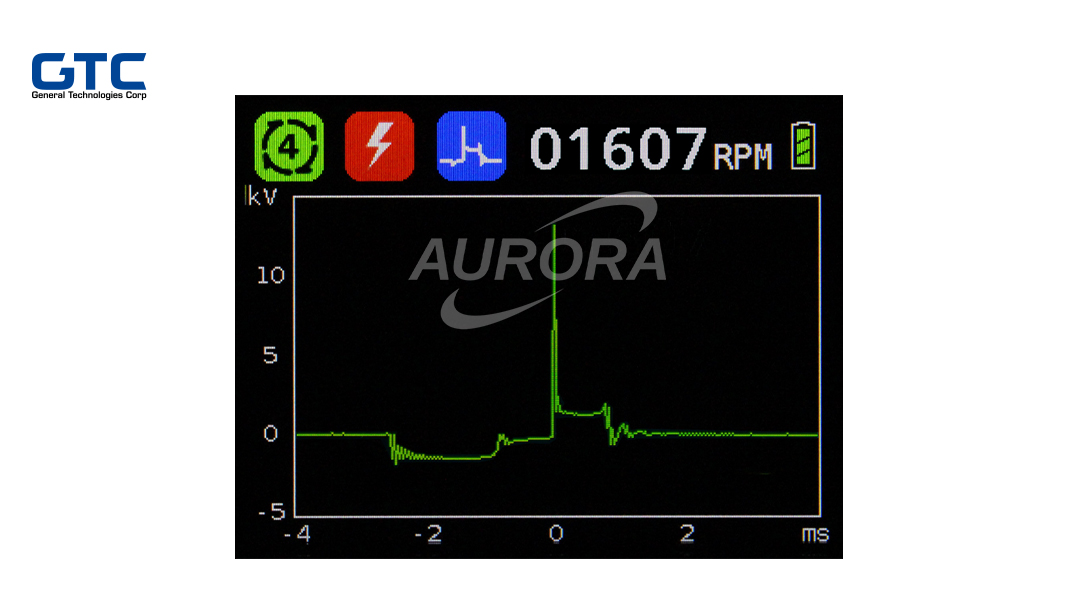

- Display waveforms in real time
- Detect and display dwell angle (in high voltage sparkplug-wire systems), and ramp time (for COP systems)

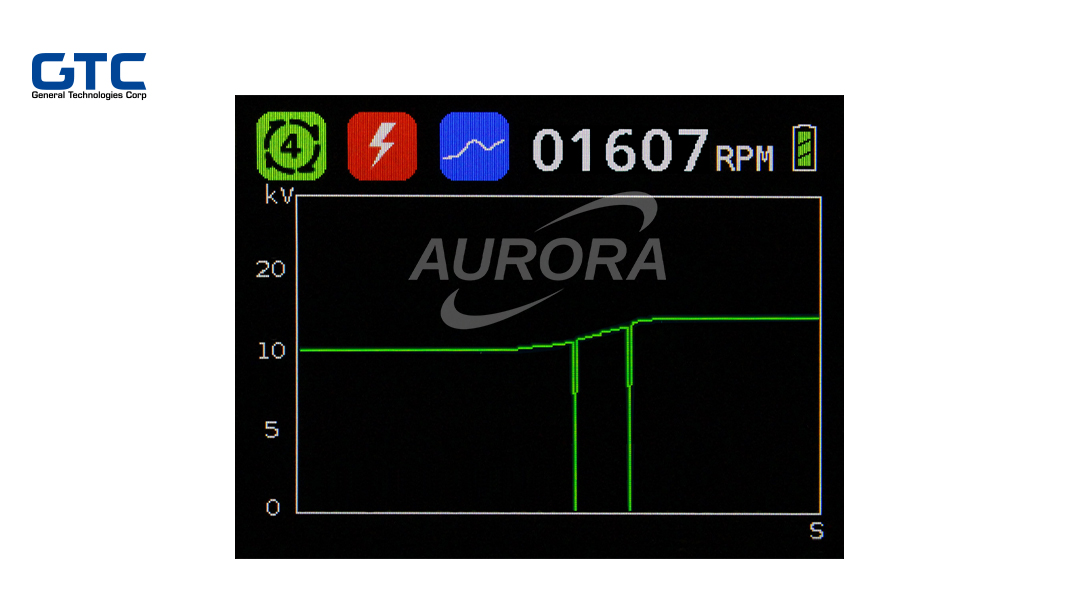

- Graph burn time, spark plug voltage, dwell/ramp time, and RPM for each spark, allowing for detection of misfires
- Compare readings between cylinders with a “candlestick” graph that displays maximum, minimum, and average readings for each cylinder
- Display everything on a 3.5″ color TFT LCD screen
- Rechargeable Li-Ion battery provide 6+ hours of working time
- Pass the rigorous “MIL-STD-810” drop test
- Multiple sensors and hook-up options:
- All specially designed for use with the GTC505
- 2 m (74”) shielded coaxial cable with BNC and sensor connector
- 30 cm (12”) shielded flexible gooseneck with BNC and sensor connector
- Cable and flexible gooseneck can be use with any sensor
- Electrically shielded clip-on and spark plug wire sensors fit up to 8 mm diameter wires
- Active coil on plug (COP) sensor for optimal signal detection and rejection of interference from other ignition modules
- Automatic detection and configuration of the sensors
- Compatible with the 2 m (74”) shielded coaxial clip-on spark plug wire sensor P/N: GTC014
