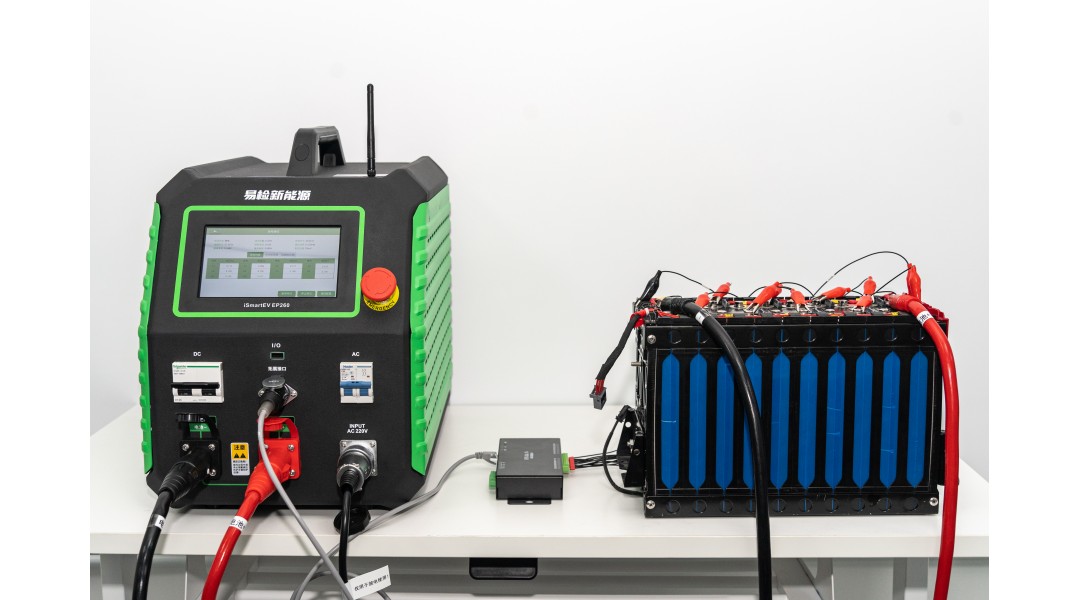

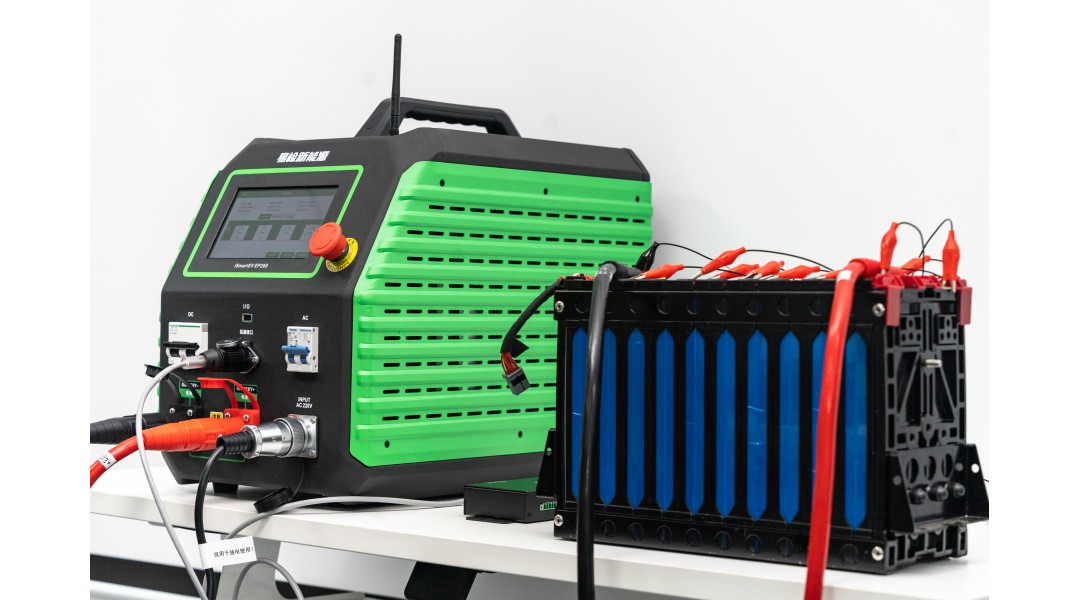

EP260 employs the state of the art charging and discharging technique, and according to the charging and discharging characteristics of lead-acid batteries and lithium-iron batteries, a variety of test and maintenance modes are built in, which are suitable for the discharging, charging, cyclic charging and discharging tests of various lead-acid batteries and lithium-iron batteries available in the market.
Utilizes cutting-edge charge-discharge testing technology to prevent interference with the BMS system
Designed with a wide voltage range and equipped with various built-in charge-discharge modes, meeting the voltage and current requirements of diverse battery pack modules during charge-discharge operations, ensuring safety and enhancing efficiency
Allows flexible configuration of charge-discharge rules and activation cycles, effectively enhancing battery capacity
Equipped with safety features including reverse polarity protection, high-temperature alert, over-current protection, fan failure detection, over-voltage warning, and excessive current alert, ensuring hardware safety
| Parameters | |||
|---|---|---|---|
| Power Input | AC90~264V/40~60Hz | Discharge Current Range | Max current:100A/ max power:7.2kW |
| Display | 7-inch TFT LCD screen, resolution 1024X 600 | Charge Control | Constant current charging + constant voltage charging |
| Data Communication | CAN, RS485 | Discharge Mode | Constant current discharge |
| Group Terminal Voltage Accuracy | ≤士0.5%FS+0.3V, resolution:0.1V | Charge, Discharge Protection | Overcharge and over-discharge protection, over-high temperature protection |
| Single Voltage Accuracy | ≤+0.1%FS+5mV, resolution:0.001V | Host Protection | Over-temperature, over-current and out-of controcurrent trigger shutdown protection |
| Test Current Accuracy | ≤士1%FS+0.2A, resolution:0.1A | Reverse Polarity Protection | Supported |
| Charge and Discharge Voltage Range | DC2~260V | Abnormal Protection | Power cord power failure, main cable power failure |
| Charge Current Range | Maximum current 100A, maximum power 4.4kW | Over-temperature Protection | The resistance box over-temperature is 85°C; Radiator over temperature is 100°C |
